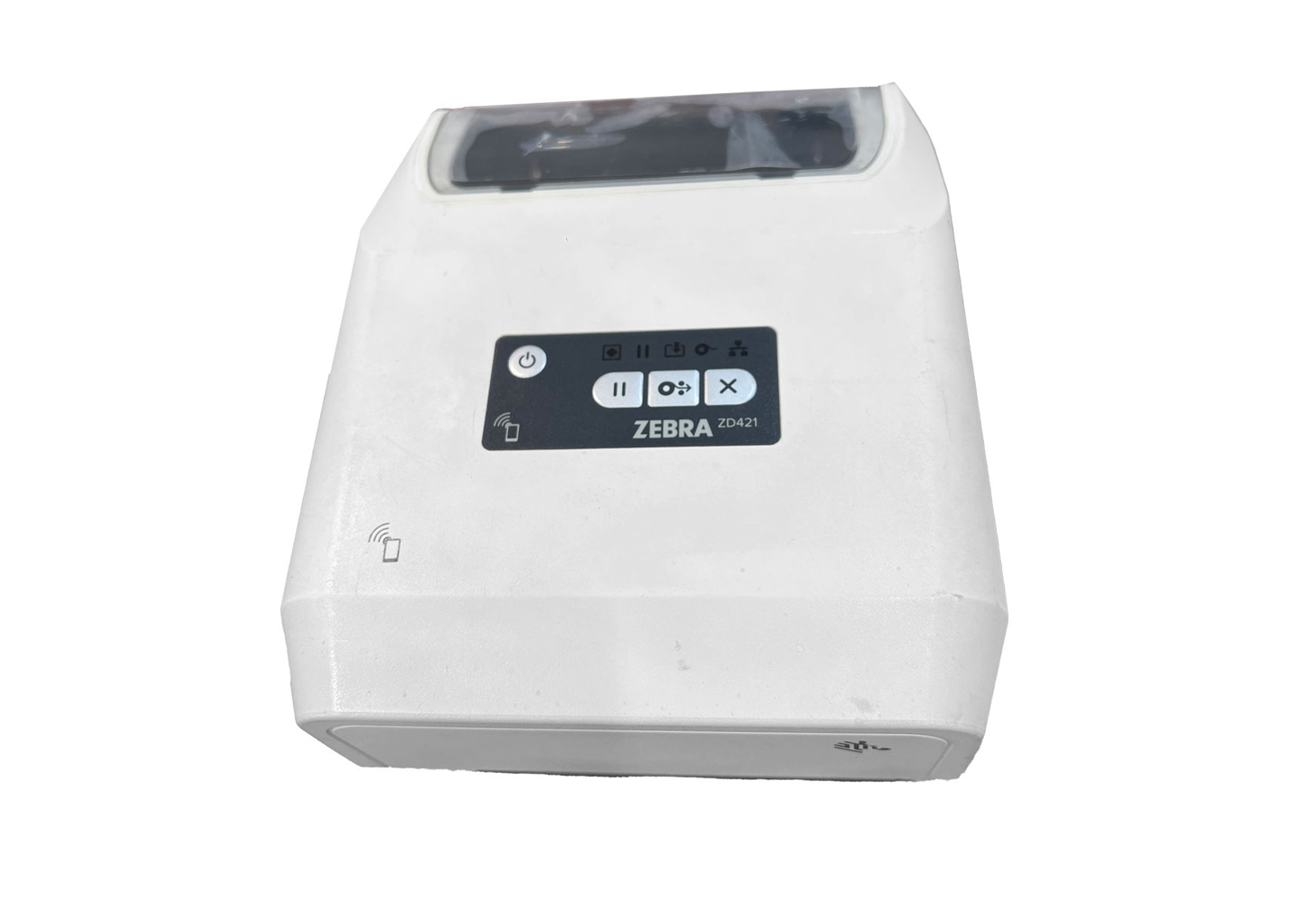

The Zebra ZD421 printer, with its high-resolution printing capabilities, has become an ideal choice for various applications such as fixed asset labels, medical labels, shelf logistics, and manufacturing production.

Device Highlights:

  • Resolution: Options for 203 dpi/8 dots per millimeter or 300 dpi/12 dots per millimeter, catering to different printing needs.

  • Memory Configuration: 512 MB of flash memory, 256 MB of SDRAM, plus 64 MB of user-available non-volatile memory and 8 MB of user-available SDRAM ensure smooth printing.

  • Printing Width: Reaches 4.09 inches/104 millimeters at 203 dpi and 4.27 inches/108 millimeters at 300 dpi.

  • Ribbon Cartridge Size: Suitable for both 203 dpi and 300 dpi with a size of 4.09 inches/104 millimeters.

  • Printing Speed: 6 inches/152 millimeters per second at 203 dpi and 4 inches/102 millimeters per second at 300 dpi.

Media and Ribbon Specifications:

  • Label Length: Ranges from a minimum of 0.25 inches/6.4 millimeters to a maximum of 39.0 inches/991 millimeters.

  • Media Width: Thermal paper from 0.585 inches/15 millimeters to 4.25 inches/108 millimeters; thermal transfer ribbon rolls from 0.585 inches/15 millimeters to 4.41 inches/112 millimeters.

  • Ribbon Outer Diameter: Available in 300 meters (984 feet) and 74 meters (243 feet).

  • Ribbon Core Inner Diameter: 1 inch/25.4 millimeters for 300 meters and 0.5 inch/12.7 millimeters for 74 meters.

Other Parameters:

  • Media Thickness: Ranges from a minimum of 0.003 inches (0.08 millimeters) to a maximum of 0.0075 inches (0.19 millimeters).

  • Media Types: Supports roll paper or folded paper, die-cut or continuous with/without black marks, suitable for various label materials, continuous receipt paper, and wristbands.

With its exceptional performance and versatility, the Zebra ZD421 printer is an ideal choice for enterprise label printing.
